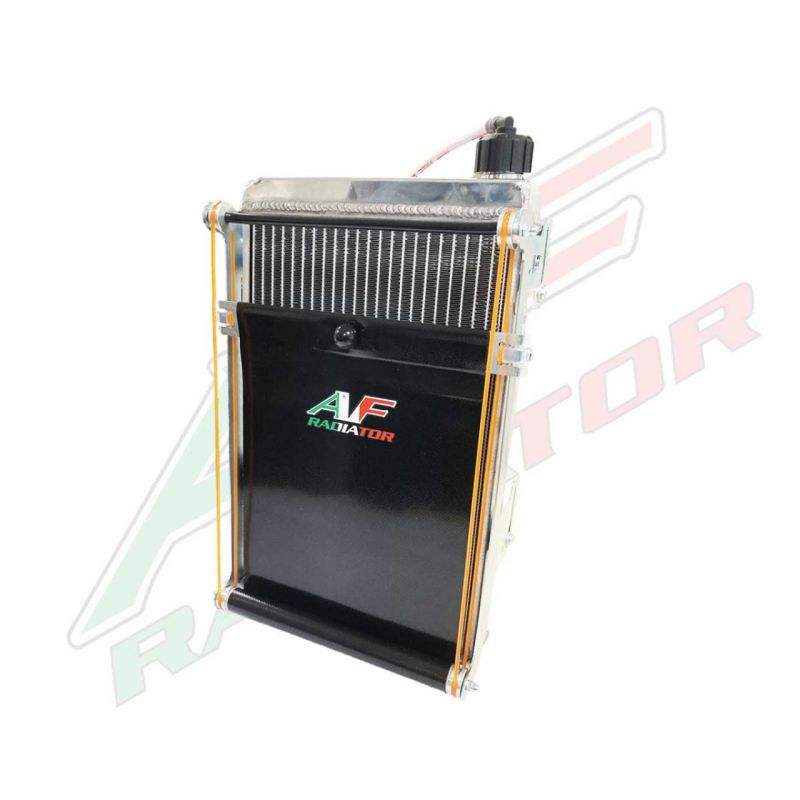

Standard Go Kart Radiator Curtain for AF1 model.
The radiator curtains are necessary to partialize the flow of air onto the radiator, thus managing the water temperature optimally.
The curtains are finished by CNC machinery in every detail to improve their sliding and thus guarantee the best functionality of the product.
On the sides the two 5.5 cm slots allow you to use the radiator in different climatic conditions.
It is possible to cover or uncover the radiant mass according to the pilot's needs.
Two supports are added to the structure of the curtains, the measurements of which have been calculated to have maximum stability.
The curtains also take into account the position of the water outlet pipe.
The lower part of the supports has been sanctified to prevent dangerous friction.
The pulleys on which the blackout system runs have the same radius, thus keeping the curtain taut and always adhered to the lower rod.
The rod in which the plastic rings slide to adjust the height of the curtain is designed to avoid the annoying problem of the fabric bending.
With the AF Radiator curtains it is much easier for the driver to manage the radiator cover during the race.
